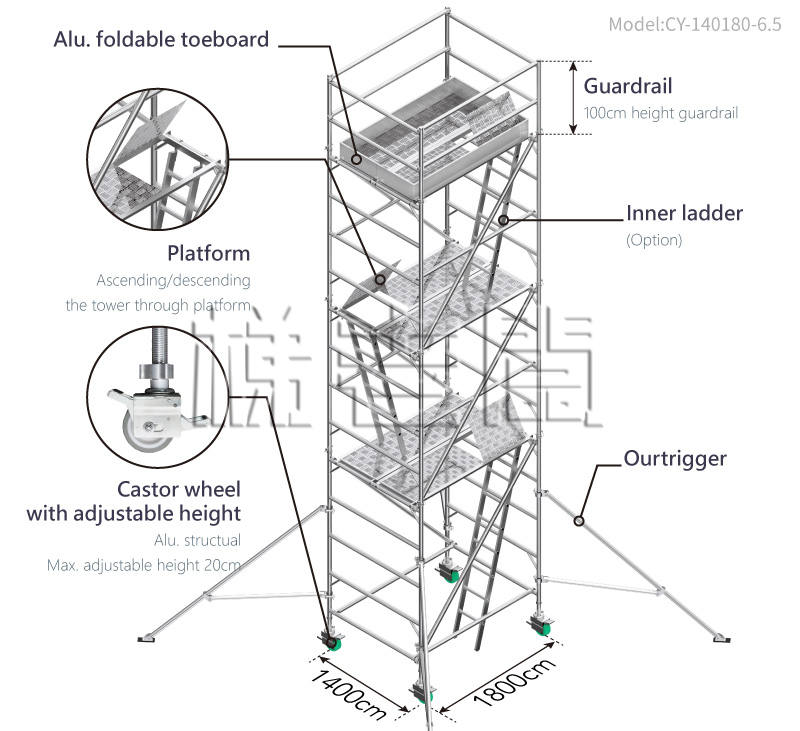

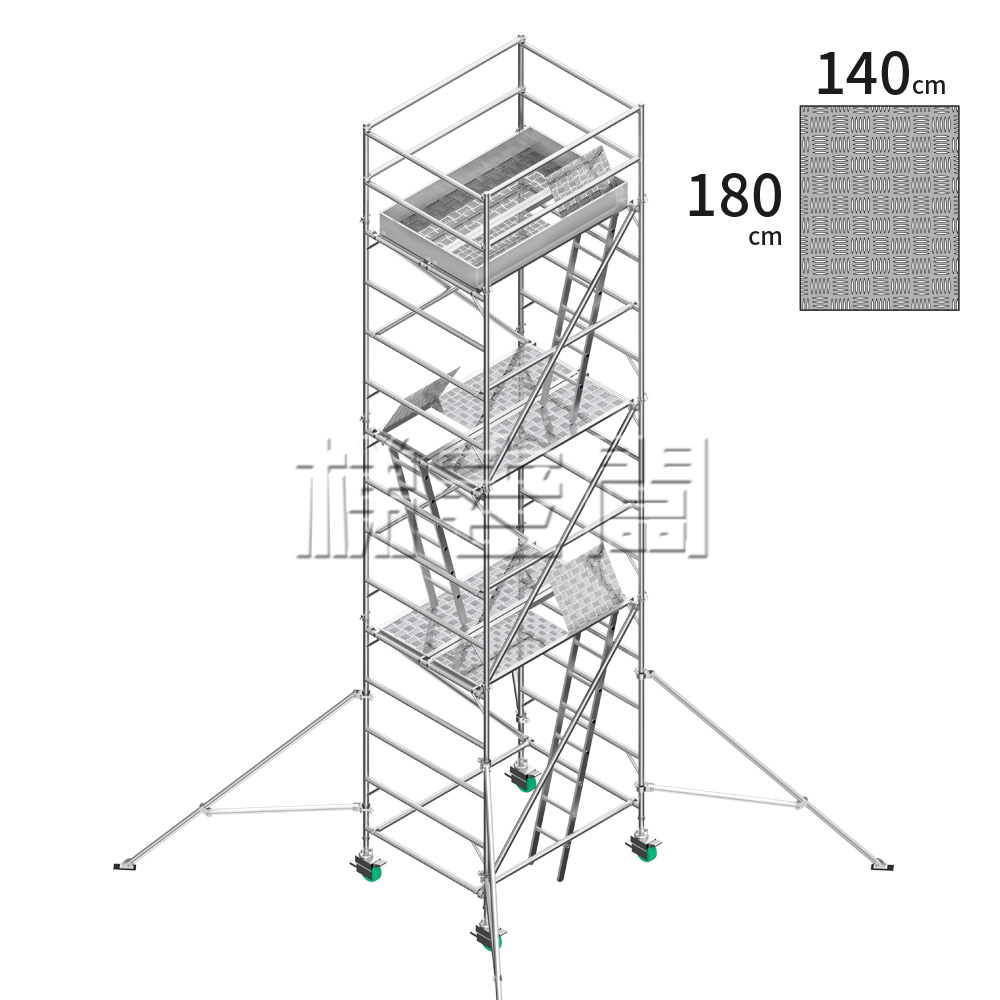

Aluminum Wide Mobile Tower –
Double Platform (140×180 cm)
CY-140180



  • Material: 6061 aluminum alloy
  • Load Rating: 200 kg/m² static load capacity
  • Structure: Ø50 mm aluminum alloy round tubes
  • Platform: Aluminum hatch-type platform with safety locking pins
  • Applications: Industrial, construction, stage production, logistics, stairwell access, power plants, refineries, aircraft maintenance, elevated maintenance and cleaning
  • Documentation: Structural strength calculation report (licensed structural engineer) and assembly drawings included
    Standard: Complies with EN1004:2004
Categories: ,
分享：

CY-140 is an aluminum mobile tower featuring two platforms per level, providing a wider working area and enhanced structural stability. It is suitable for both high and low working environments, such as stairways, elevated spaces, and theaters.

CY-140180+

① 將底架與平台放置後拉起，同時安裝斜桿

② 安裝腳撐

③ 繼續堆疊框架與平台至所需高度

④ 安裝扶手架與腳趾板

※詳細操作與細節請參閱使用說明書

Uneven Floor Environments

Suitable for areas with varying heights
(e.g., stairwells, theaters)

鷹架高低差

Adjustable in 50 cm Increments

8‑inch Brake Wheel with 57 cm Axle, Adjustable up to 20 cm

ANTI-SLIP ROUND TUBE

50mm anti-slip round tube for better grip and ascending/discending

分隔線 BAR

QUICK CONNECTING PIN

We use quick connecting pin to connect frames to save the assembling time

分隔線 BAR
鋁咬花板

ALUMINUM WORKING PLATFORM

Ascending／discending the tower through platform

分隔線 BAR

QUICK OPERATED FASTENER

Use screw to connect to the frame to fit with different environment

分隔線 BAR

QUICK LOCK FOR WIND-LIFTING PROTECTION

Pull the lock to avoid the platform being wind-lifting cases

分隔線 BAR

NON-SLIP OUTRIGGER

Provide extra safety and stability

Storage cart

Bottome frame can be used as storage cart;
no extra accessories and easy to storage and moving
