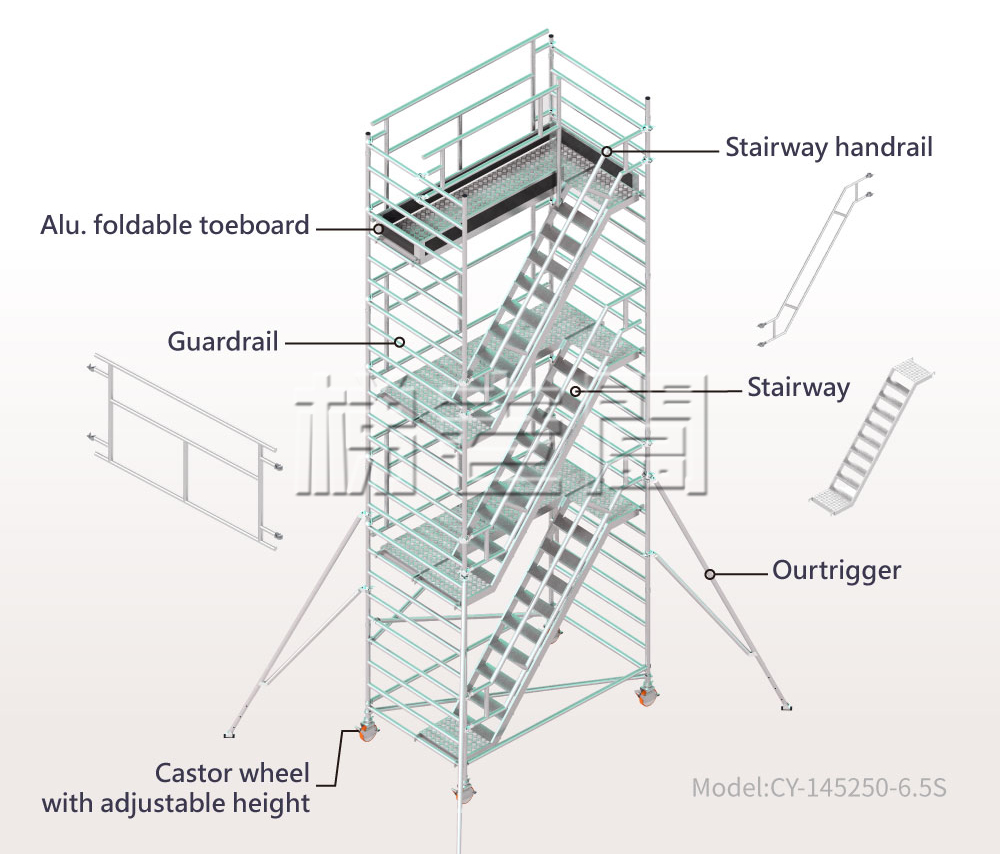

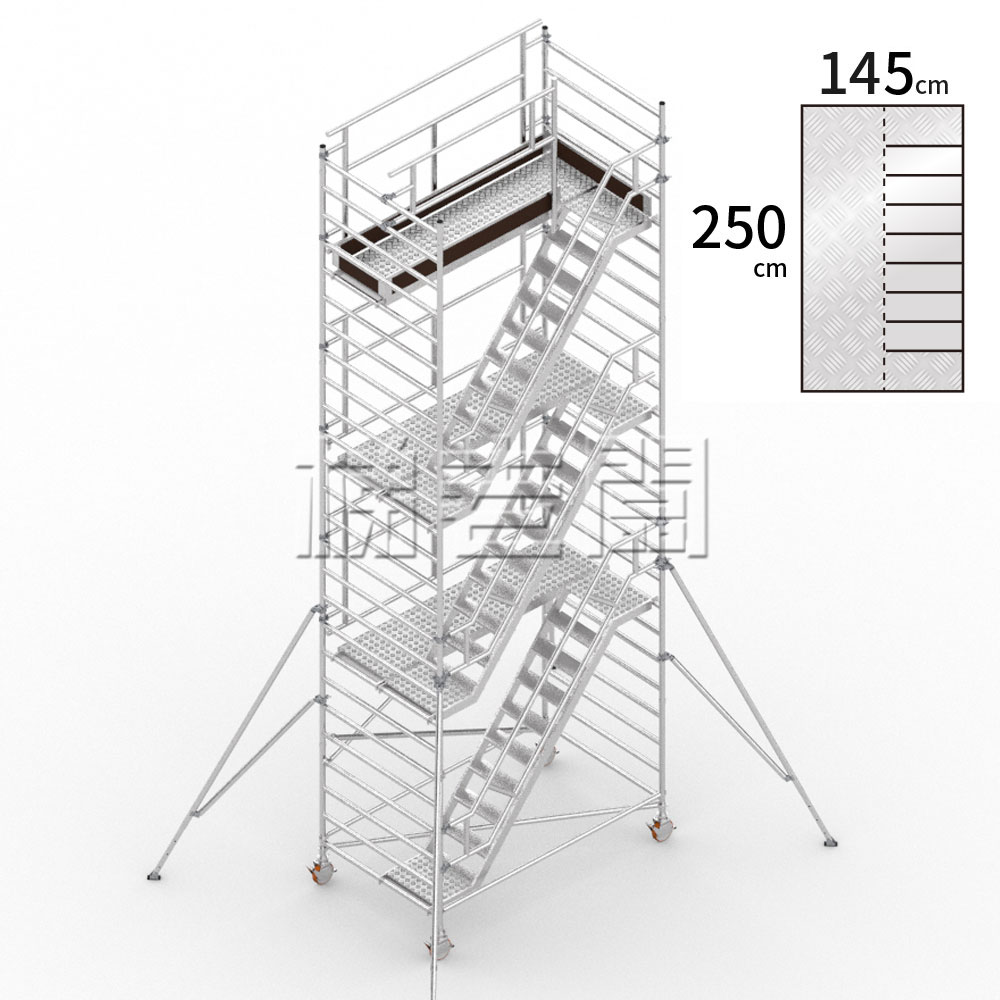

Aluminum Stairay Mobile Tower
(CY-145250S)

. sgs

6063 aluminum structure with anodizing finishing
Made of structure aluminum
Casted aluminum brace claws
Aluminum platforms provide longer durability
Stairways ladder gives safer access to platform
Trap platforms are fitted with self-closing trapdoor
Adjustable height and lockable swivel castors for easy and quick relocation
Components are provided with safety hooks that prevent parts being blown off or becoming displaced
Aluminum toe board
Max. load on platform-200kg/m2
Max. platform height-12.3m

Categories: Alu. mobile tower, Alu. mobile tower

Description

CY-145250S+

組裝說明

① 將底架與平台放置後拉起，同時安裝斜桿

② 安裝腳撐

③ 繼續堆疊框架與平台至所需高度

④ 安裝扶手架與腳趾板

※詳細操作與細節請參閱使用說明書

Our mobile tower is suitable for high and low environments
(such as stairways, and theaters etc.)

鷹架高低差

鷹架平台高度可調整標題

By moving the platform @ the frame to adjust the standing height
(min adjustable distance is 46 cm)

平台高度可調整

(with adjustable height function)
PU + Nylon 8”Hight Loading Castor Wheel
Turn and ajust the height (Max. 20cm)

CY-140-3-3-8吋輪

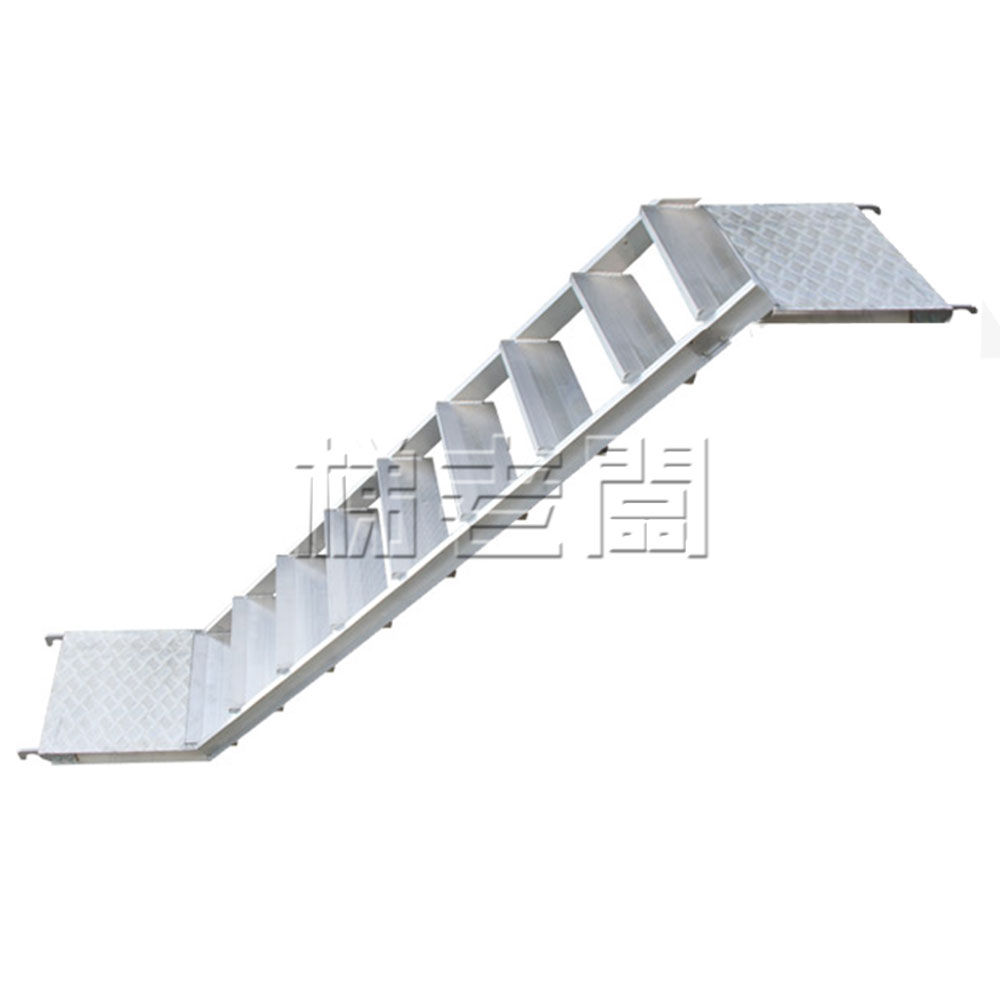

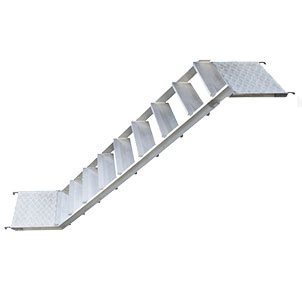

STAIRWAY

Non-slip design with sturdy, durable structure

寬踏走梯

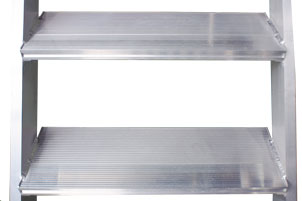

ALUMINUM TREADS

Base on safety standard and make every step can be safe

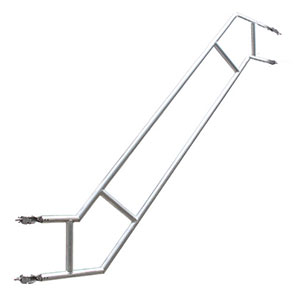

STAIRWAY HANDRAIL

Handrail gives the user highest safety while using

QUICK CONNECTING PIN

We use quick connecting pin to connect frames to save the assembling time

鋁咬花板

ALUMINUM WORKING PLATFORM

Ascending／discending the tower through platform

14-3

QUICK LOCK FOR WIND-LIFTING PROTECTION

Pull the lock to avoid the platform being wind-lifting cases

腳撐底座

NON-SLIP OUTRIGGER

Provide extra safety and stability
