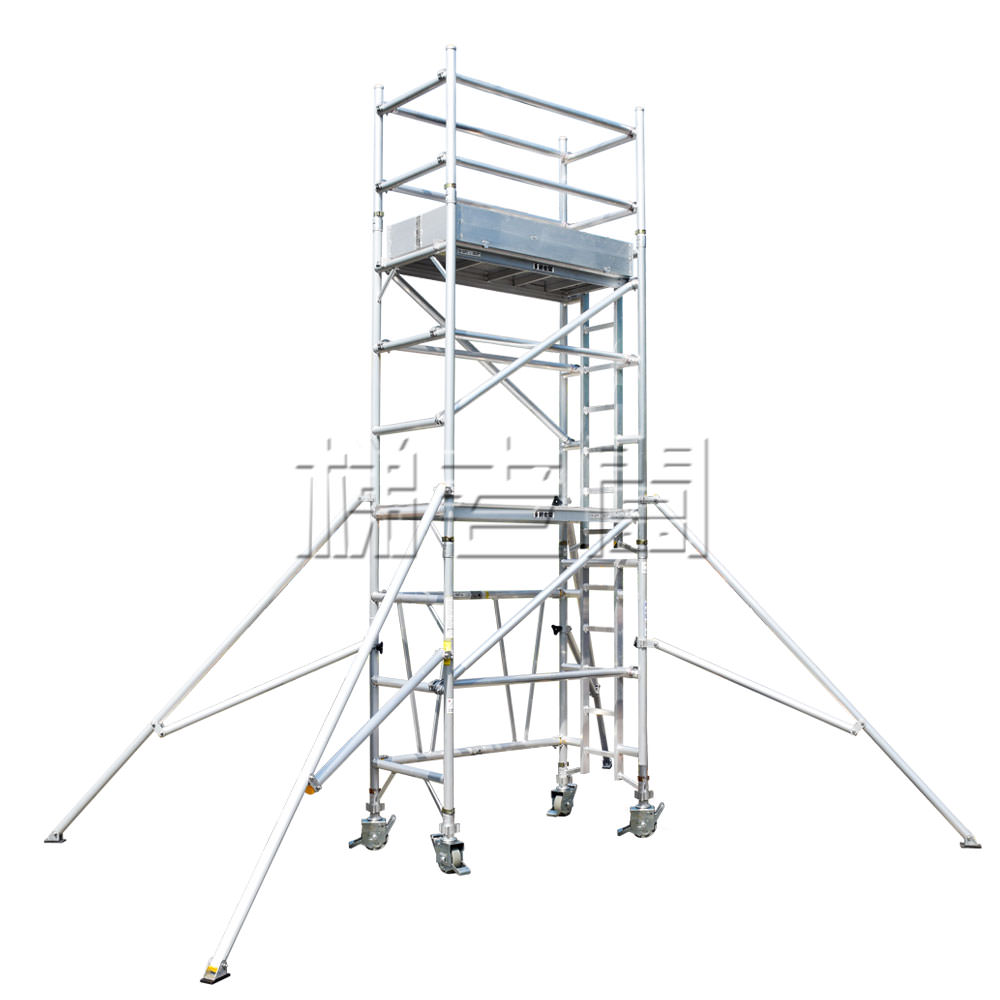

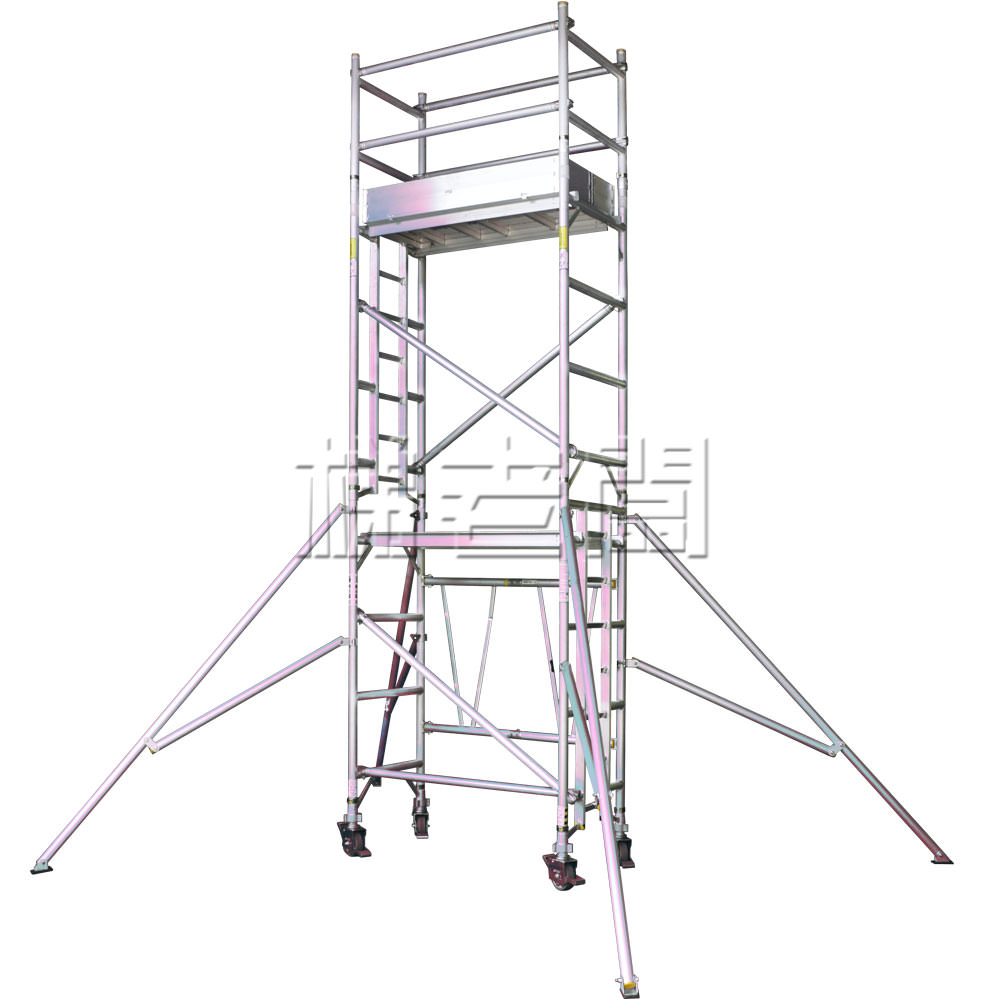

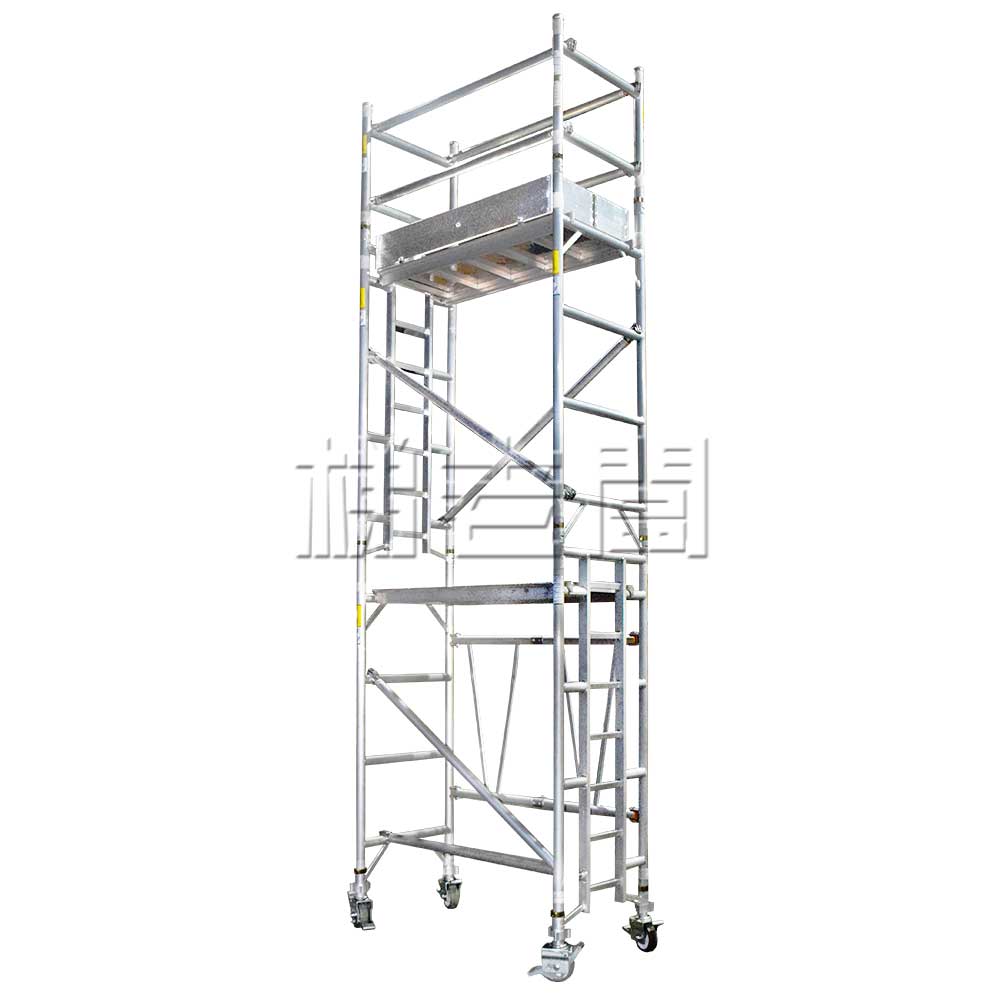

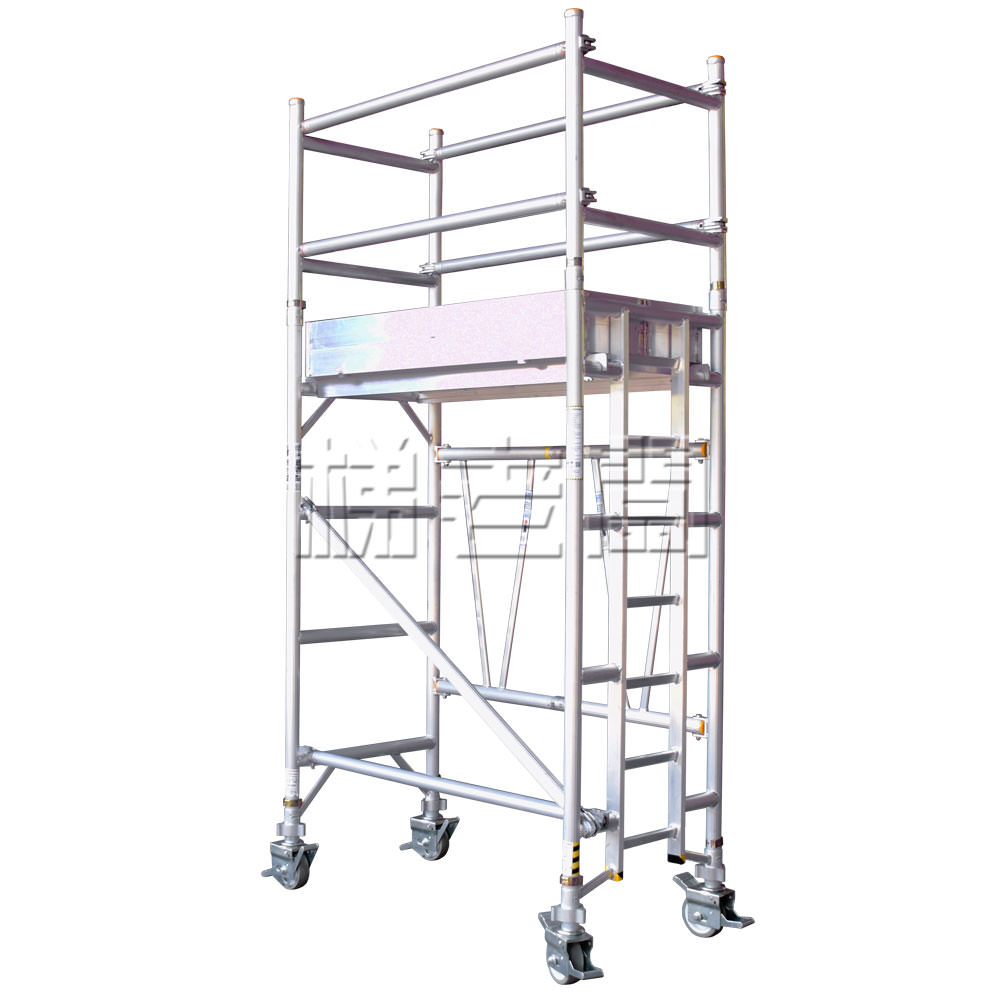

Aluminum Compact Foldable Mobile Tower
CY-075140



  • Material: 6061 aluminum alloy
  • Load Rating: 200 kg/m²
  • Structure: Ø50 mm aluminum alloy round tubes
  • Platform: All-aluminum hatch-type platform
  • Applications: Indoor narrow-space access, interior maintenance, interior fit-out scaffolding, and cleanroom work platforms
  • Documentation: Structural strength calculation report endorsed by a licensed structural engineer
  • Standard Compliance: Manufactured in accordance with EN1004:2004
  • Features: Lightweight, easy to transport and store; compact design suitable for elevator access
Categories: ,
分享：

CY-075140 is a aluminum foldable mobile tower, the bottom frame is just only 1.4m high (detail info please refer to the spec or mail to us)

This model can be added up to the standing height @5.6m, working height is around 7.6m, CY-075140 foldable mobile tower can be easily used in narrow working space and opened up at position on site; suitable for contractors, construction and other industries etc…

有特規款與基本款兩種，最高堆疊至3層

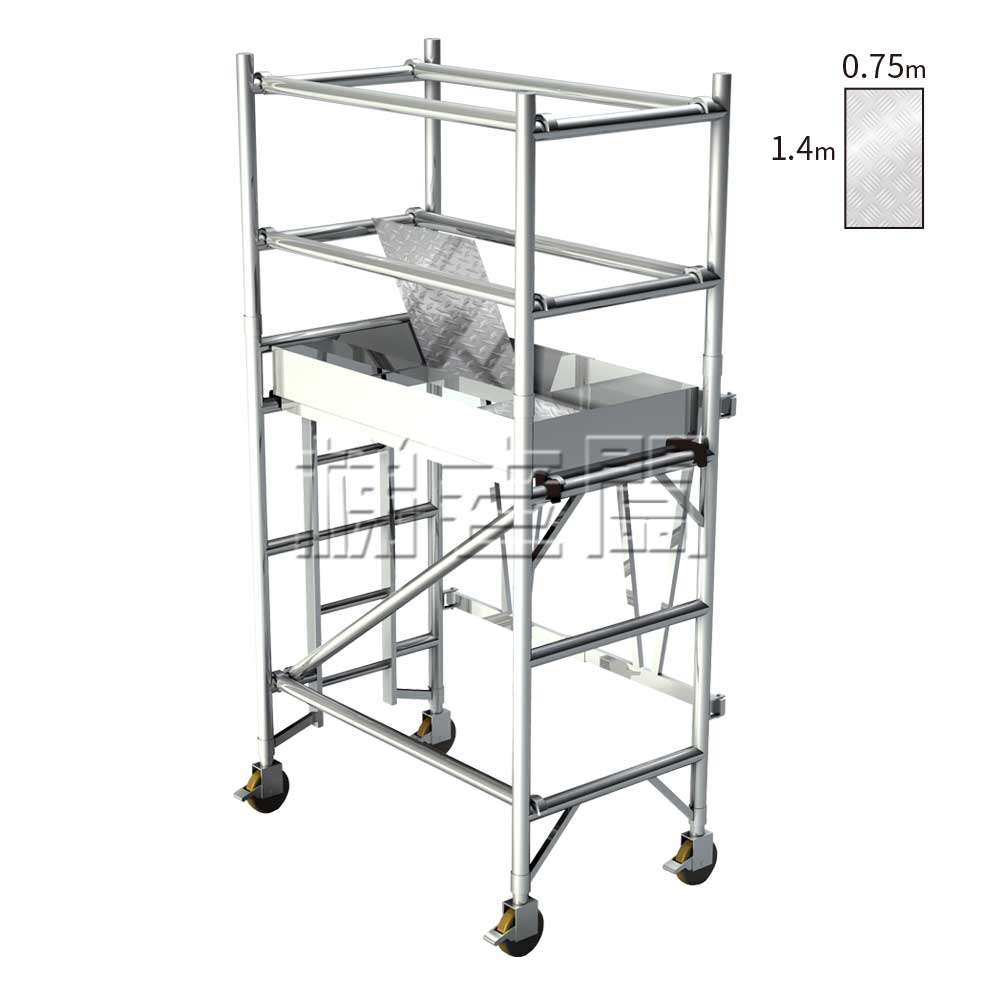

平台規格:75×140 公分        護欄高:100公分

梯老闆-小型鷹架規格

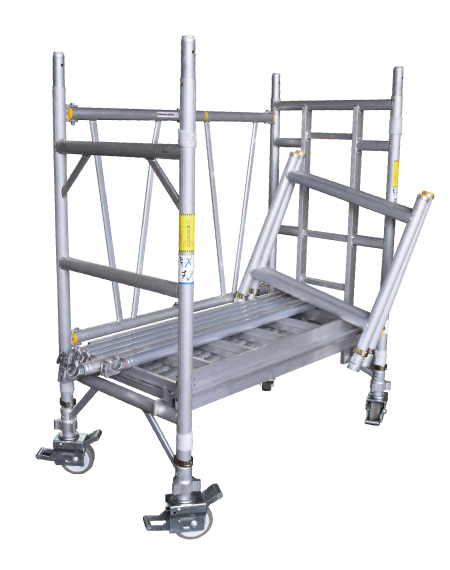

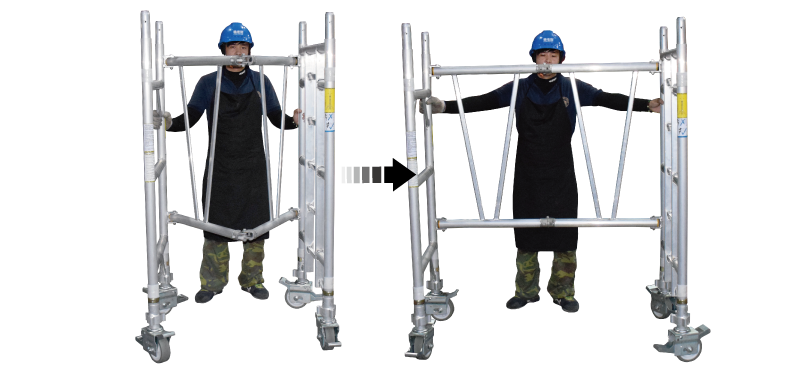

Folding Base Frame

Quick Setup and Secure Positioning

梯老闆快拆式小鷹架，展開示意。

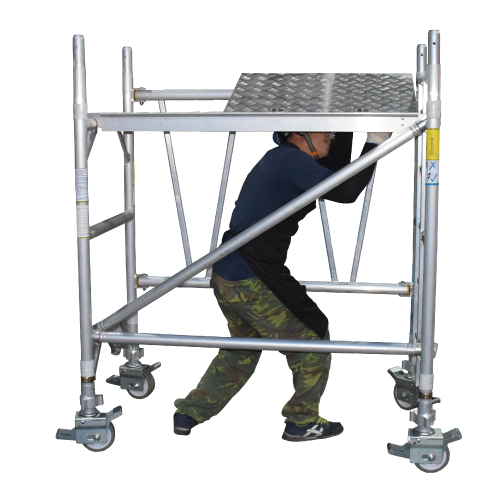

Internal Climb for Safe Assembly and Operation

內部攀爬

Adjustable in 46 cm Increments

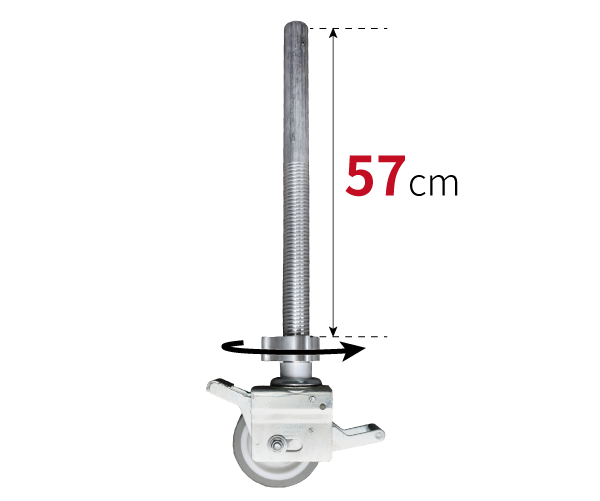

6‑inch Brake Wheel with 57 cm Axle, Adjustable up to 20 cm

First Tier Serves as Storage Cart for Easy Handling and Mobility

鷹架推車

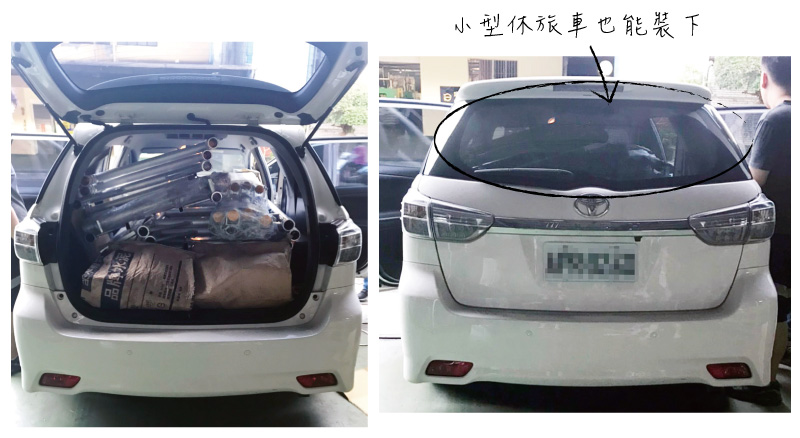

休旅車也能裝

小型的wish休旅車，也能將5.1米鷹架裝入趴趴走

小型休旅車也能裝下5.1米鷹架

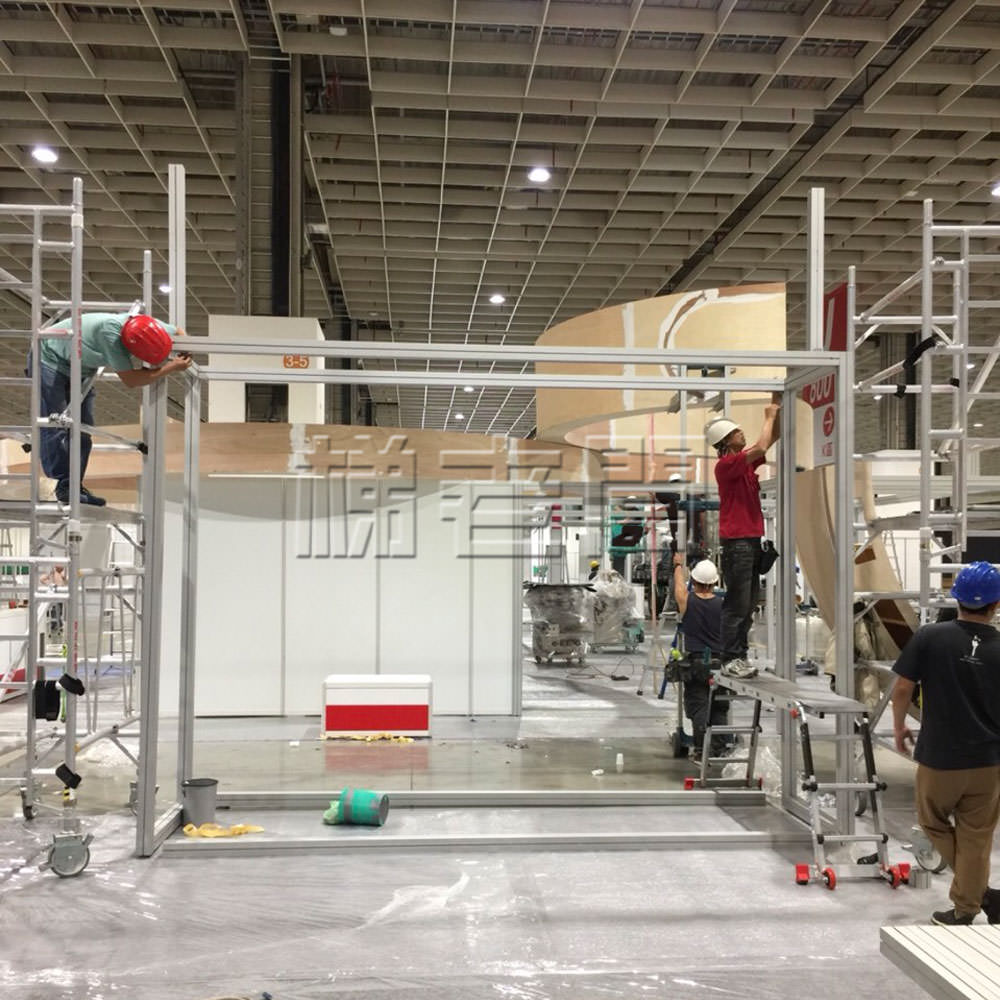

In-Use Photos
小鷹架實績照片
小鷹架使用照2
小鷹架使用照1

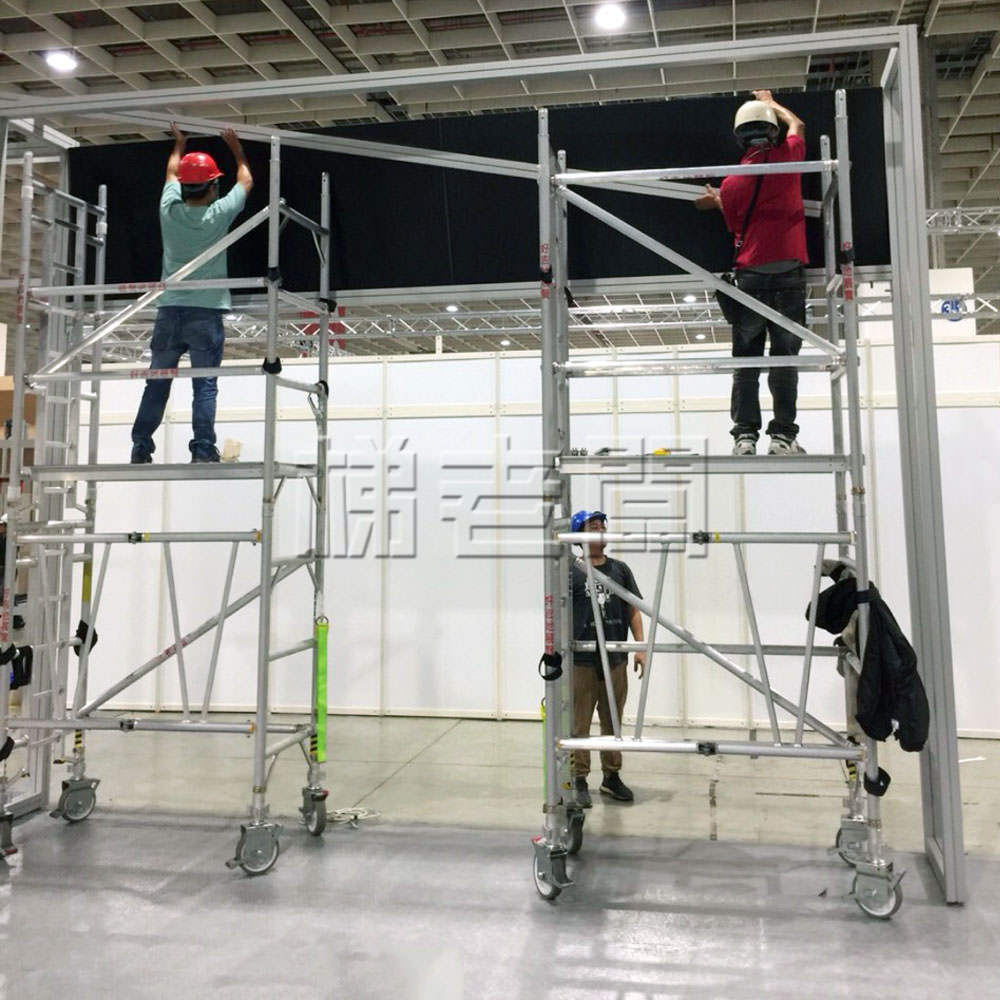

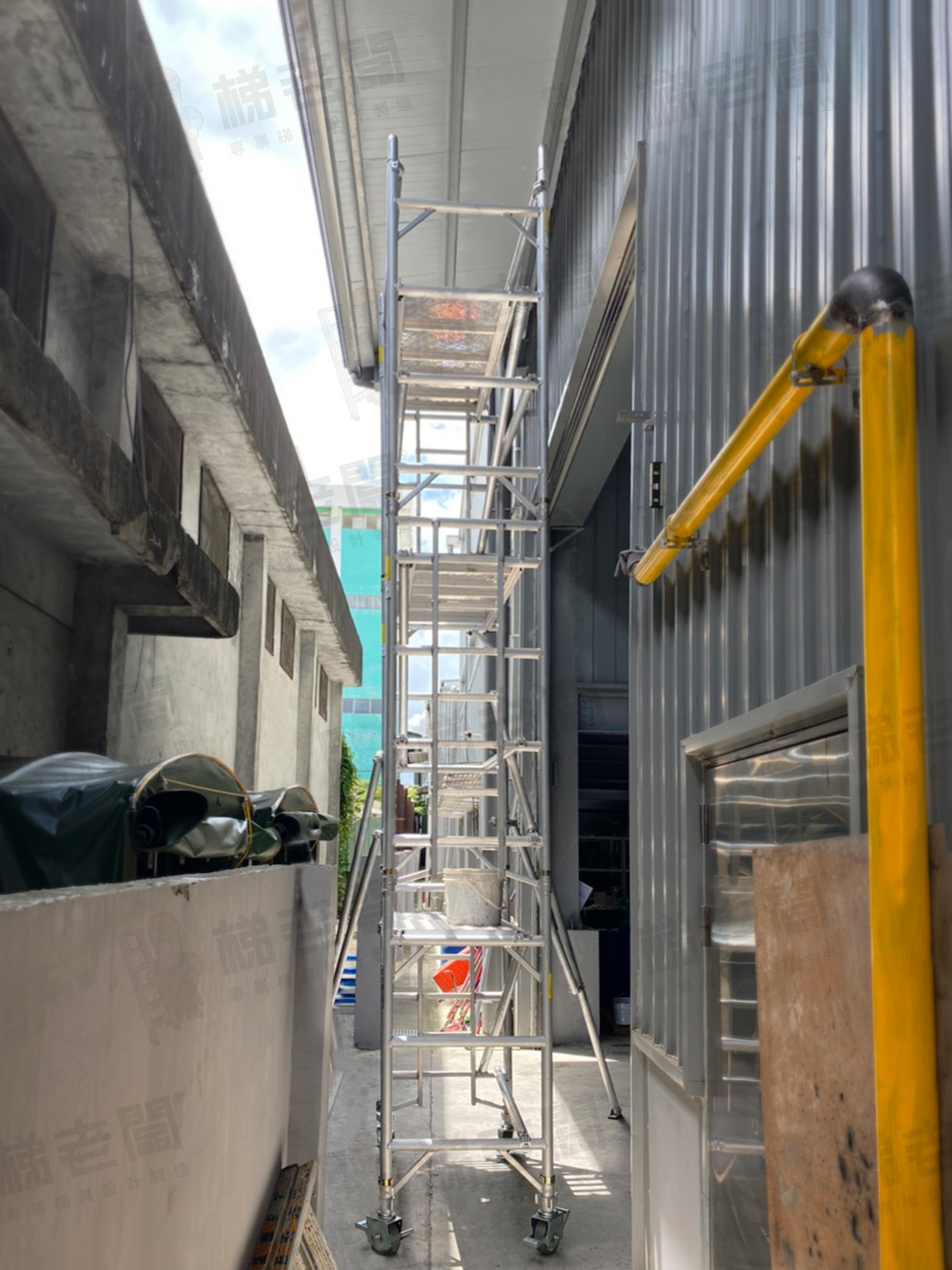

梯老闆快拆式小鷹架-客戶實際分享，狹窄空間使用2

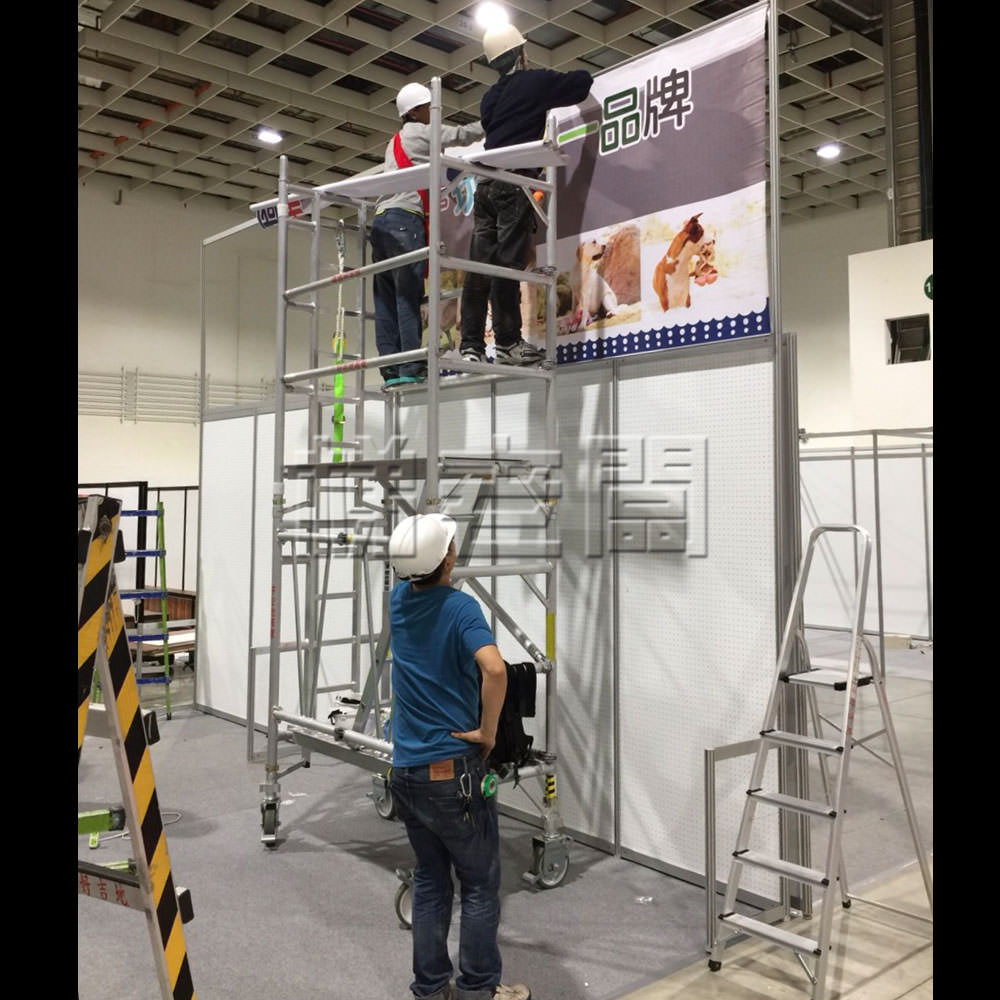

梯老闆快拆式小鷹架-客戶實際分享，狹窄空間使用
